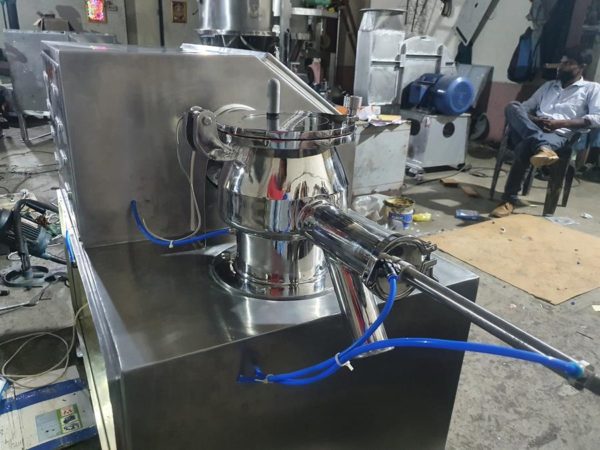

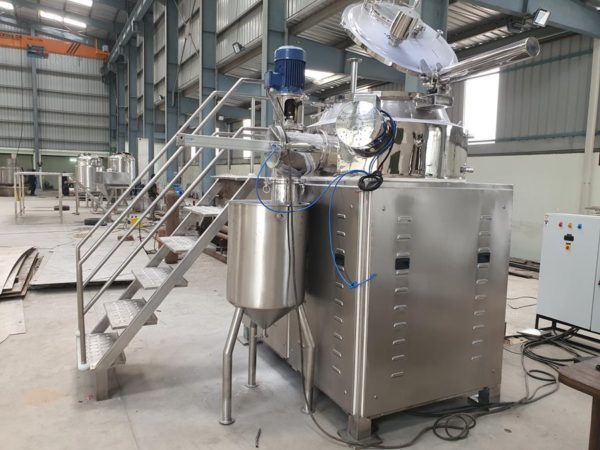

RAPID MIXER GRANULATOR / HIGH SHEAR MIXER GRANULATOR

RAPID MIXER GRANULATOR / HIGH SHEAR MIXER GRANULATOR

Table of Contents

The High Shear Mixer Granulator is designed to meet special needs of tablet formulation technology. This is achieved by reducing processing time, homogeneous mixing, even distribution of binder, wetting, nucleation and granule size growth with sampling provision for in process analysis and proven safety during processing, compliant to cGMP norms.

Features:
• Mixing. massing and granulation are all performed within a few minutes in the same piece of equipment.
• Mixing & granulating in single bowl with short batch time and residue free discharge.

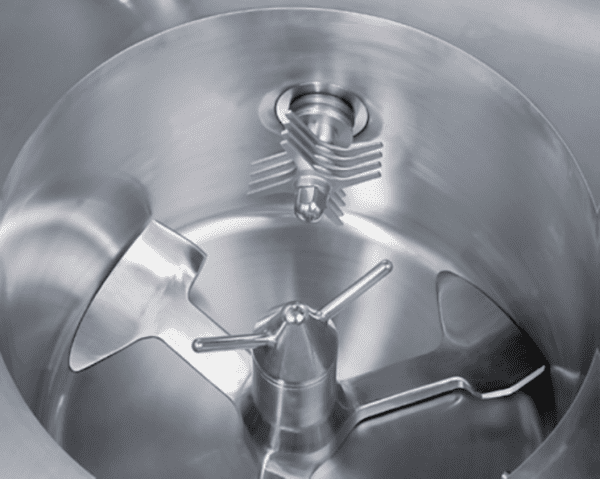

• Unique Design with three arm mixing impeller with Chopper Blade to cut Lumps and make granules.
• Optional Features: VFDformixing & granulating. Inline Milling, Bowl Jacketfor heating & cooling, Vacuumised process, Binder Spray System, FLP motor & PLC Controls.

Model Gross Capacity(L) Working Capacity (L) Main Motor (HP) Chopper Motor (HP)
ST/RMGIO 10 8 2 HP 0.5 HP
ST/RMG50 50 40 7.5HP 2 HP
ST/RMG150 150 120 15 HP 3 HP
ST/RMG250 250 190 25 HP 5 HP
ST/RMG400 400 300 40 HP 7.5 HP
ST/RMG600 600 450 50 HP 7.5 HP
ST/RMG750 750 560 60 HP 10 HP
ST/RMGIOOO 1000 750 60 HP 10 HP
ST/RMG1200 1200 1000 75HP 15HP
ST/RMG1400 1400 1200 90 HP 15 HP
ST/RMG1600 1600 1300 20 HP 20 HP
ST/RMG2000 2000 1600 125 HP 25 HP
Swarnim Technocrats specializes in manufacturing a wide range of industrial equipment, including ribbon blenders, reactors, mixers, and other process machinery tailored to industries like pharmaceuticals, food, and chemicals. Explore our Products page for details.
Yes, we offer fully customizable solutions! Whether you need specific capacities, materials (e.g., SS304/SS316), or additional features like vacuum mixing, contact our team via Contact Us for a tailored quote.

We deliver our products nationwide, including key industrial hubs like Ankleshwar, Ahmedabad, Mumbai, and Delhi. After order confirmation, expect delivery within 4-6 weeks, depending on customization. Reach out for a detailed timeline.

Getting a quote is simple! Visit our Contact Us page, call us at [insert phone number], or click Get a Quote to submit your requirements. Our team will respond promptly with a competitive offer.
